SND series gear synchronous motor
Performance characteristics
Ÿ The shunt motor adopts a floating oil distribution plate structure, which will produce a certain pressure loss. Generally, the pressure difference between the inlet and the outlet is about 10-12bar. In actual use, it may also be higher than this value. The efficiency of the shunt motor is generally greater than 90%.
The shunt motor is a high-speed dynamic component. Generally, when the speed of the gear-type shunt motor is higher than 1000rpm, the synchronization accuracy is higher; the higher the speed, the greater the noise, and the gear-type shunt motor cannot be used in noise-sensitive occasions; if there is a silent requirement, Please choose a plunger type shunt motor.
Due to the influence of manufacturing errors and the compressibility of the oil, the shunt motor has synchronization errors; its synchronization error depends on the compensation valve block to quickly compensate and eliminate at the end of the actuator stroke; the shunt motor circuit must include a makeup valve block (usually with safety Valve and anti-cavitation check valve), otherwise it will not operate normally.
Models and specifications
| model | Displacement | Minimum flow | Maximum flow | Minimum speed | Maximum speed | P1 | P2 | Maximum pressure difference between working pieces |
| ml/rev | l/min | l/min | rpm | rpm | bar | bar | bar | |
| SND10·2 | 2 | 1.2 | 5.0 | 600 | 2500 | 250 | 280 | 200 |
| SND10·3.15 | 3.15 | 1.9 | 7.8 | 600 | 2500 | 250 | 280 | 200 |
| SND10·4 | 4 | 2.4 | 13 | 600 | 2500 | 250 | 280 | 200 |
| SND10·5 | 4.9 | 3.0 | 12.4 | 600 | 2500 | 280 | 250 | 200 |
| SND10·6.2 | 6.2 | 3.7 | 15.5 | 600 | 2500 | 250 | 280 | 200 |
| SND20·4.8 | 4.8 | 2.8 | 12.0 | 600 | 2500 | 250 | 280 | 200 |
| SND20·6.5 | 6.5 | 3.9 | 16.2 | 600 | 2500 | 250 | 280 | 200 |
| SND20·8.3 | 8.3 | 5.0 | 20.7 | 600 | 2500 | 250 | 280 | 200 |
| SND20·11 | 11.1 | 6.7 | 27.8 | 600 | 2500 | 250 | 280 | 200 |
| SND20·14 | 14.0 | 8.4 | 35.0 | 600 | 2500 | 250 | 280 | 200 |
| SND20·16 | 16.6 | 10.0 | 41.5 | 600 | 2500 | 200 | 280 | 200 |
| SND20·23 | 23.4 | 14.4 | 51.0 | 600 | 2200 | 200 | 280 | 200 |
| SND20·31 | 31.5 | 18.9 | 69.0 | 600 | 2200 | 200 | 280 | 200 |
| Note: P1=rated working pressure, P2=maximum peak pressure | ||||||||

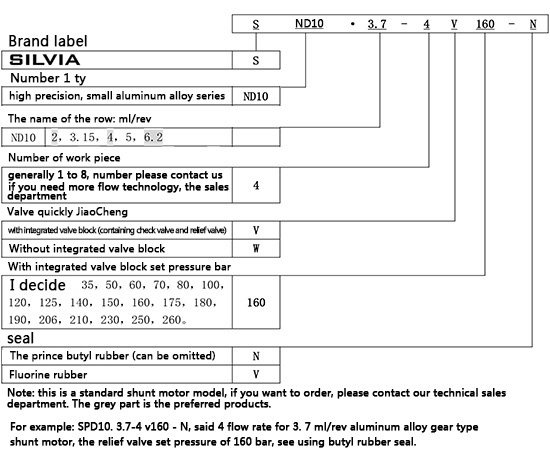

Shunt motor order
Performance characteristics: The shunt motor adopts a floating oil distribution plate structure, which will generate a certain pressure loss. Generally, the inlet and outlet pressure difference is about 10-12 bar. In actual use, it is also possible to exceed this value. The efficiency of a shunt motor is generally greater than 90%. The shunt motor is a high-speed dynamic component
